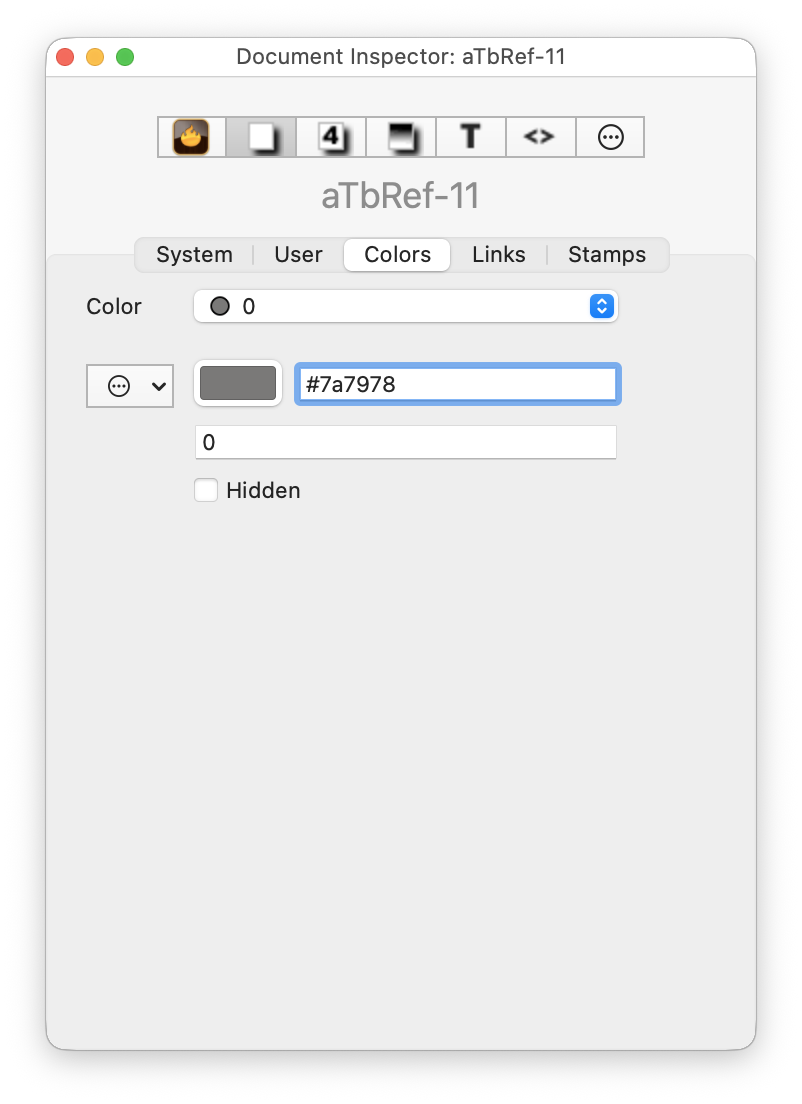

This tab allows inspection and editing of the current documents defined colours, also termed named colours. By default all new Tinderbox documents have 29 defined colours. These comprise 10 greyscale colours named '0' though '9' (from light to dark) and 19 colours named for the actual colour ('green', bright red', etc.). The colours may be added to or deleted or the colour represented by the name may be changed. The named colours are listed here and their actual colours can be seen here, displayed using the built-in 'Tinderbox 7' scheme. That scheme is not the default scheme but give colours truest to the names used.
Color. The pop-up menu shows the 28 defined colours in alphabetical order (0-9 then a-z). Any new user-added colours are listed at an appropriate place in this list. The list also includes the special system colour 'transparent'.
Gear wheel button (right):
- Delete color. Deletes the currently displayed named colour.
- New color. Adds a new colour to the list. The default name is 'new colour' and the default colour is #999999. Both the name and colour value can be edited.
- [rule]
- Save Color Scheme… Opens a macOS file save dialog for saving the current colour scheme as a Tinderbox colour scheme (.tbc) file. The file is saved to the app's current folder. Note the 'color schemes' folder for making schemes available to all files via the app itself.
Colour controls. There are two controls:
- the colour chip shows the current colour defined. Clicking on the chip opens the OS' Colors dialog. Any picker on the dialog may be used to define a colour which is used to update the colour chip and the hexadecimal code for that colour.
- the colour's defined value as a hexadecimal code (a hash (#) followed by six characters (0–9,A–F). A named colour cannot be defined using a variant of another named colour. Thus 'my red' cannot be given a named description like 'muted red'—it must be a hexadecimal value. Colour value may also be set be adding a valid hsv() or rgb() action code expression; once saved a hexadecimal value will replace the expression's code.
Name box. This box shows the name stored for a defined colour. The name can be edited if desired. Note colours are case-sensitive - 'blue' and 'Blue' are treated as separate colours.
Hidden tick-box (default un-ticked). Unwanted system colours can be omitted from colour menus and lists. To hide a colour, select it and tick the "Hidden" box. Hidden colours can still be used in rules and actions, and their definition can be changed in this Inspector. However, the hidden colours will not be shown in menus and pop-up colour lists.
See more about Colours in Tinderbox.
